• Rear axle, 3.08 ratio (Not available with (NHT) Max Trailering Package.)
• Suspension Package, Magnetic Ride Control road sensing electronically controlled shock absorbers
• GVWR, 7300 lbs. (3311 kg) (Requires 4WD model.)
• Keyless start, push button
• Transfer case, active, single-speed, electronic Autotrac with rotary controls, does not include neutral. Cannot be dinghy towed (Requires 4WD model. Not available with (NHT) Max Trailering Package.)
• Differential, heavy-duty locking rear
• 4-wheel drive
• Battery, 720 cold-cranking amps with 80 amp hour rating
• Alternator, 150 amps
• Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power

• Wheels, 20" x 9" (50.8 cm x 22.9 cm) polished-aluminum
• Tires, P275/55R20 all-season, blackwall
• Tire, spare P265/70R17 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Fascia, front body-color
• Fascia, rear color-keyed
• Luggage rack side rails, roof-mounted (Includes bright accent.)
• Assist steps, Black (Deleted when (RVQ) Assist step kit, Black, LPO or (VXH) Assist step kit, Chrome, LPO are ordered.)
• Moldings, body-color bodyside
• Headlamps, IntelliBeam, automatic high beam on/off
• Headlamps, high intensity discharge
• Fog lamps
• Daytime Running Lamps, with automatic exterior lamp control
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and ground illumination
• Glass, deep-tinted
• Wipers, front intermittent, Rainsense
• Wiper, rear intermittent with washer
• Liftgate, power, hands free

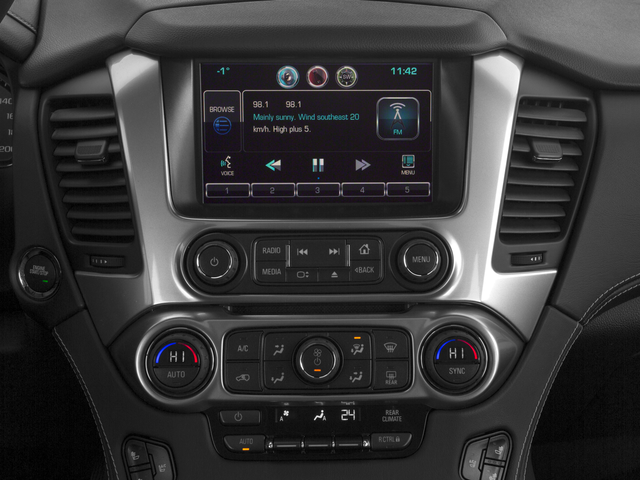

• Audio system, Chevrolet MyLink Radio with Navigation and 8" diagonal color touch-screen AM/FM stereo, seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone; includes 5 USB ports and 1 auxiliary jack
• Audio system feature, single-slot CD/MP3 player (Replaced by (U42) rear seat entertainment system when (U42) is ordered.)
• Audio system feature, Bose Centerpoint Surround Sound premium 10-speaker system
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Wireless charging
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

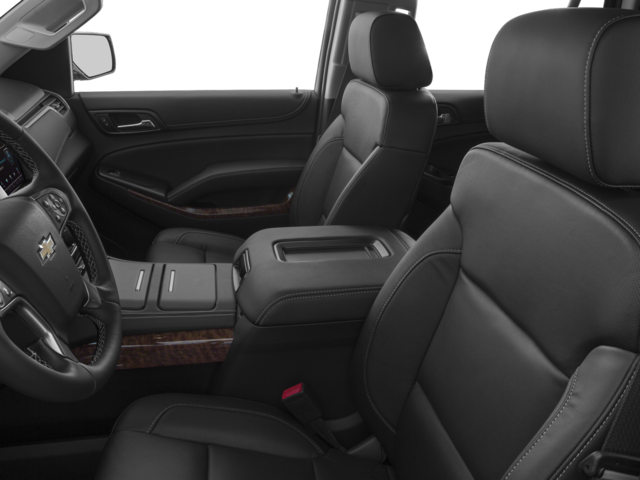

• Seating, front bucket with Perforated leather-appointed heated and cooled seat cushions 12-way power driver and passenger seat includes 6-way power cushions, driver seat 2-position memory, 4-way power lumbar control and power recline
• Seat trim, perforated leather-appointed
• Seat adjuster, front passenger 6-way power
• Seats, heated and cooled driver and front passenger
• Memory settings recalls presets for driver power seat adjuster and pedals (Also includes memory presets for outside rearview mirrors and power steering column.)

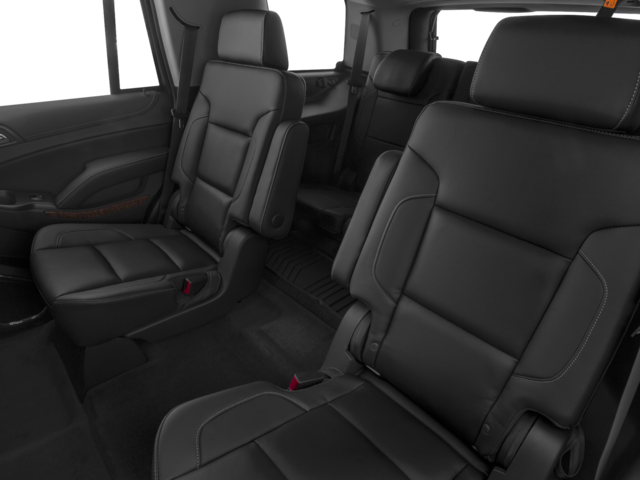

• Seats, second row bucket, power release
• Seats, heated second row
• Seats, third row 60/40 split-bench, power fold

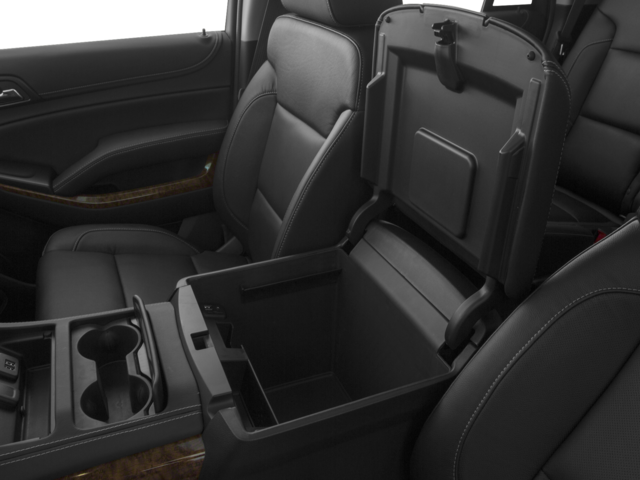

• Console, floor with storage area, cup holders and auxiliary jack
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable
• Steering column, power tilt and telescopic

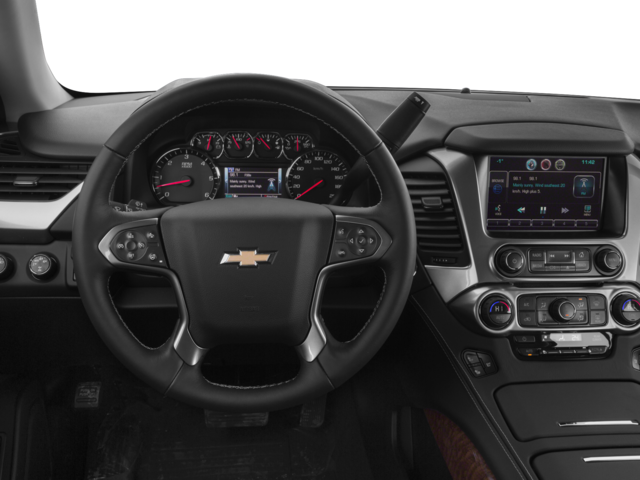

• Steering wheel, heated, leather-wrapped and color-keyed with theft-deterrent locking feature
• Steering wheel controls, mounted audio and cruise controls includes Driver Information Center controls
• Display, driver instrument information enhanced, multi-color 4.2" diagonal (Not available with (UV6) Head Up Display.)
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Door locks, power programmable with lockout protection
• Passive Entry System includes (AQQ) Remote Keyless Entry
• Remote vehicle start
• Windows, power, with Express-Down and Express-Up on front doors and lock out features
• Cruise control, electronic with set and resume speed (Not included when (Y66) Adaptive Cruise Control is ordered.)
• Universal Home Remote includes garage door opener, programmable
• Pedals, power-adjustable for accelerator and brake
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers
• Defogger, rear-window electric
• Power outlet, 110-volt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of console, 1 in 3rd row and 1 in cargo area
• Mirror, inside rearview auto-dimming
• Conversation mirror (Deleted when (UTT) Theft Protection Package is ordered.)
• Assist handles, all seats
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions.
• Cargo management system
• Cargo net
• OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Advanced Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• StabiliTrak, stability control system with brake assist, includes traction control
• Air bags, frontal and side-impact for driver and front passenger driver inboard seat-mounted side-impact and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Occupant Sensing System sensor indicator inflatable restraint, front passenger/child presence detector
• Safety Alert Driver Seat
• OnStar Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• Front and rear parking assist
• Rear Vision Camera
• Rear Cross-Traffic Alert, sensor indicator
• Side Blind Zone Alert with Lane Change Alert
• Forward Collision Alert sensor indicator
• Lane Keep Assist
• LATCH system (Lower Anchors and Top tethers for Children), for child safety seats; lower anchors and top tethers located in all second row seating positions, top tethers located in third row seating positions
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center
• Theft deterrent, electrical, unauthorized entry

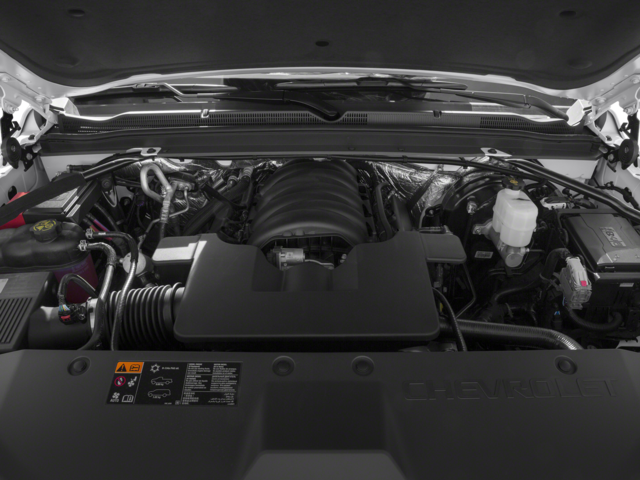

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 N-m] @ 4100 rpm) (STD)

• Engine
• 5.3L EcoTec3 V8 with Active Fuel Management
• Direct Injection and Variable Valve Timing includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 N-m] @ 4100 rpm)
• Rear axle
• 3.08 ratio (Not available with (NHT) Max Trailering Package.)
• Suspension Package
• Magnetic Ride Control road sensing electronically controlled shock absorbers
• GVWR
• 7300 lbs. (3311 kg) (Requires 4WD model.)
• Keyless start
• push button
• Transfer case
• active
• single-speed
• electronic Autotrac with rotary controls
• does not include neutral. Cannot be dinghy towed (Requires 4WD model. Not available with (NHT) Max Trailering Package.)
• Differential
• heavy-duty locking rear
• 4-wheel drive
• Cooling
• external engine oil cooler
• heavy-duty air-to-oil integral to driver side of radiator
• Cooling
• auxiliary transmission oil cooler
• heavy-duty air-to-oil
• Battery
• 720 cold-cranking amps with 80 amp hour rating
• Alternator
• 150 amps
• Trailering equipment includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• Suspension
• front coil-over-shock with stabilizer bar
• Suspension
• rear multi-link with coil springs
• Steering
• power
• Tire carrier
• lockable outside spare
• winch-type mounted under frame at rear
• Fascia
• front body-color
• Fascia
• rear color-keyed
• Luggage rack side rails
• roof-mounted (Includes bright accent.)
• Moldings
• body-color bodyside
• Headlamps
• high intensity discharge
• Fog lamps
• Daytime Running Lamps
• with automatic exterior lamp control
• Mirrors
• outside heated power-adjustable
• power-folding and driver-side auto-dimming with integrated turn signal indicators and ground illumination
• Glass
• deep-tinted
• Liftgate
• power
• hands free
• Audio system feature
• Bose Centerpoint Surround Sound premium 10-speaker system
• Radio
• HD
• Wireless Charging
• Floor covering
• color-keyed carpeting
• Steering column
• power tilt and telescopic
• Steering wheel
• heated
• leather-wrapped and color-keyed with theft-deterrent locking feature
• Display
• driver instrument information enhanced
• multi-color 4.2" diagonal (Not available with (UV6) Head Up Display.)
• Warning tones headlamp on
• key-in-ignition
• driver and right-front passenger safety belt unfasten and turn signal on
• Remote vehicle start
• Windows
• power
• with Express-Down and Express-Up on front doors and lock out features
• Universal Home Remote includes garage door opener
• programmable
• Pedals
• power-adjustable for accelerator and brake
• Climate control
• tri-zone automatic with individual climate settings for driver
• right-front passenger and rear passengers
• Defogger
• rear-window electric
• Power outlet
• 110-volt
• Power outlets
• 5 auxiliary
• 12-volt includes outlets in the instrument panel
• console
• back of console
• 1 in 3rd row and 1 in cargo area
• Mirror
• inside rearview auto-dimming
• Conversation mirror (Deleted when (UTT) Theft Protection Package is ordered.)
• Assist handles
• all seats
• Lighting
• interior with dome light
• driver- and passenger-side door switch with delayed entry feature
• cargo lights
• door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions.
• Cargo management system
• Cargo net
• Air bags
• frontal and side-impact for driver and front passenger driver inboard seat-mounted side-impact and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Occupant Sensing System sensor indicator inflatable restraint
• front passenger/child presence detector
• Safety Alert Driver Seat
• Front and rear parking assist
• Rear Vision Camera
• Rear Cross-Traffic Alert
• sensor indicator
• Side Blind Zone Alert with Lane Change Alert
• LATCH system (Lower Anchors and Top tethers for Children)
• for child safety seats; lower anchors and top tethers located in all second row seating positions
• top tethers located in third row seating positions
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: RC4
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.00
• Length, Overall w/rear bumper (in): 204.00
• Width, Max w/o mirrors (in): 80.50
• Height, Overall (in): 74.40
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 35.91
• Ground Clearance, Front (in): 7.87
• Ground Clearance, Rear (in): 7.87
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 79.90
• Cargo Area Length @ Floor to Seat 2 (in): 43.20
• Cargo Area Length @ Floor to Seat 3 (in): 11.10
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.30
• Cargo Box (Area) Height (in): 33.94
• Cargo Volume to Seat 1 (ft³): 94.7
• Cargo Volume to Seat 2 (ft³): 51.7
• Cargo Volume to Seat 3 (ft³): 15.3
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.30
• Front Shoulder Room (in): 64.80
• Front Hip Room (in): 60.80
• Second Head Room (in): 38.70
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.10
• Second Hip Room (in): 60.30
• Third Head Room (in): 38.10
• Third Leg Room (in): 24.80
• Third Shoulder Room (in): 62.60
• Third Hip Room (in): 49.30
• Summary
• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
